High-Performance Tri-cone Bit for Geological Exploration | Wear-Resistant Alloy Steel | API Standard
Product Description:

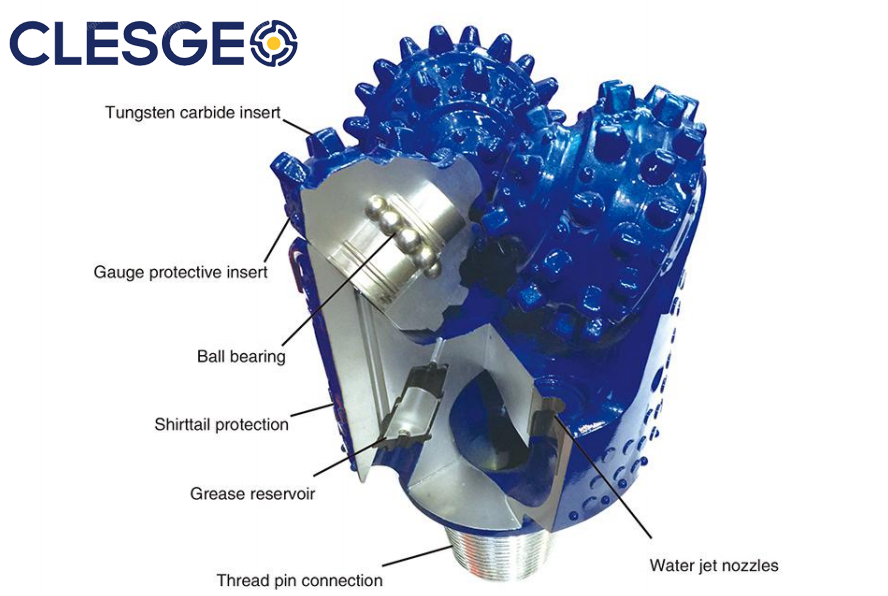

Engineered for demanding geological exploration, our high-performance tri-cone bits deliver unmatched reliability. The bit body is forged from high-strength alloy steel with specialized heat treatment, while the cones are equipped with abrasion-resistant carbide inserts, offering exceptional impact resistance and longevity in soft to medium-hard formations. Precision-machined API standard threads guarantee a secure and efficient connection to drill pipes, ensuring stable power transmission. Available in various IADC codes (e.g., 127/217 steel teeth for soft formations, 527 carbide teeth for medium-hard) and standard sizes (215mm, 311mm, 394mm, etc.), they are the optimal solution for mineral prospecting and geotechnical drilling.
Key Features & Specifications
Premium Material: High-strength alloy steel body with carbide inserts, specially treated.

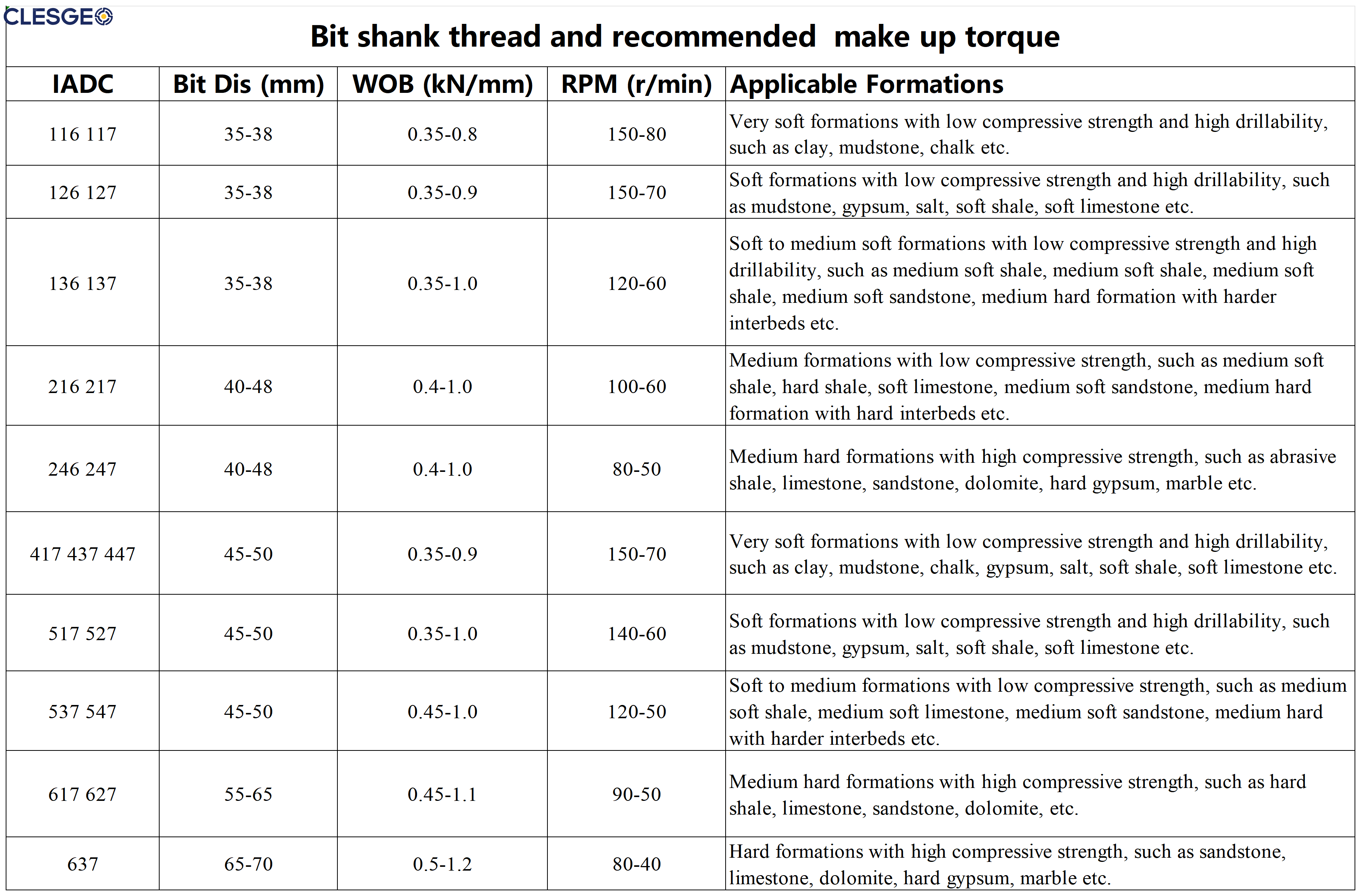

Formation-Specific: IADC codes 127/217 (Soft Formations) and 527 (Medium-Hard Formations).
Standard Sizes: 215mm, 311mm, 190mm, 394mm, 444mm, 132mm, and more.
Secure Connection: Precision API standard threads for reliable pipe connection.
Primary Application: Metal/non-metal mineral exploration, geotechnical drilling, hydrological surveys
