Surface Core Drills Spindle Drill Rig 300m

Surface Core Drills Spindle Drill Rig 300m

Product ID

Product Description:

OVERVIEW:

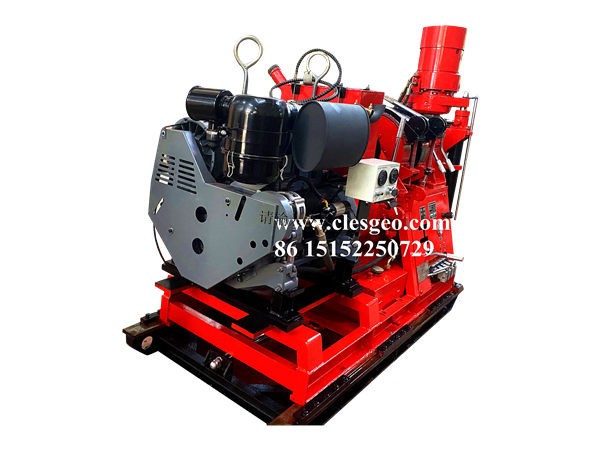

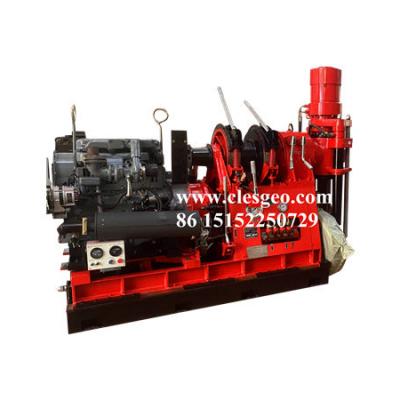

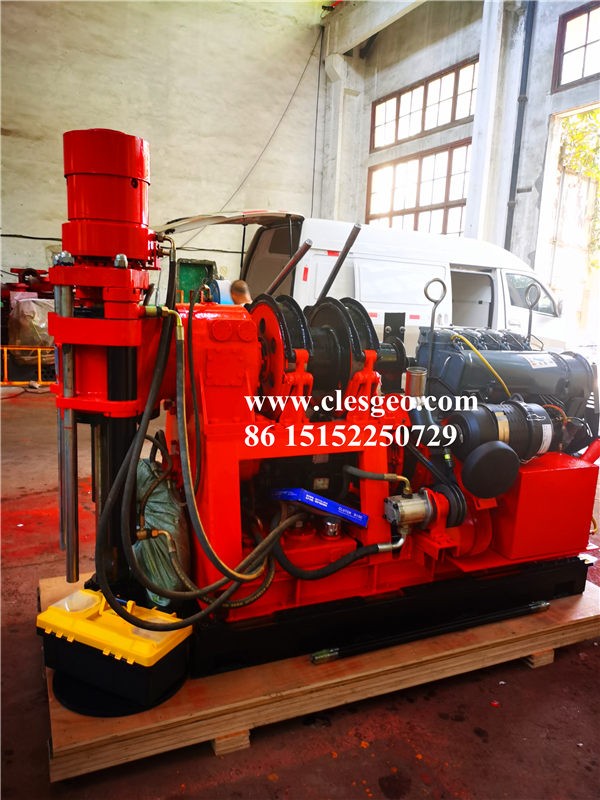

HGY-300 spindle core drilling rig is widely used in the construction of the projects, engineering prospecting, road, railway, port bridge, tunnel,waterwell,water conservancy and hydropower, industry and civil construction,geological exploration,large diameter boring pile and small diameter diamond core drilling of deep hole.etc

FEATURES:

▶ Wide range of suitable rotary speed to meet various demand.

▶ The clutch, transmission case and shifting mechanism of our rigs are same as the auto parts. it much safety and common than other spindle drilling rigs

▶ Multi- levels positive and reverse rotate speed.

SPECIFICATION：

Item	Model HGY-300
Drilling capacity	300m depth
Drill rod diameter	Φ 50mm
Drilling angle range	0-360°
Mobile Oil Cylinder stroke	400mm
Spindle speed	Forward:50;87;137;189;230;399;629;868.
Spindle speed	Reverse:39;180
Spindle inner diameter	63-95mm
Spindle Output torque(N·m)	2800
Stroke	30mm
Spindle driving force max	40 KN
Spindle lifting force max	60 KN
Lifting speed	0.41;0.72;1.13;1.6 m/s
lift capacity	Single rope 30 KN ( equip with 2 rope)
Steel wire rope diameter	Φ 13 mm
Type of Chuck	Hydraulic or clamp for select
Weight(without power)	1200kg
Dimension (LXWXH)	2300x1000x2000

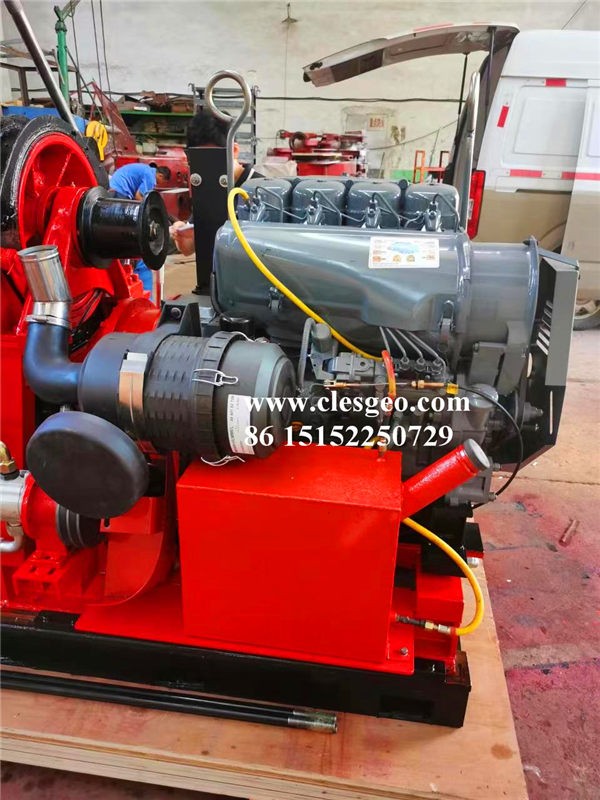

Diesel engine	24kw or 30kw for select
