NQ Drill Rods

NQ（NAU) Drill Rod
High quality  alloy steel pipe

OVERVIEW:

NQ（NAU) Drill Rod

High quality  alloy steel pipe

Great Consistent concentricity, straightness

Thru-Wall treatment,Provides 140% material strength

Heat treated box threads significantly increases thread wear life,Pin thread crest is hardened to nominal 55 HRc to eliminate。

All  DCDMA like BQ,HQ,PQ etc sizes rods available.

Specification：

NQ（NAU)) Drill Rod Enhanced in Metric length

Description	G.W          (kg)	O.D  (mm）	I.D (mm）	Thread Pitch (mm)	Pin Thread Length (mm)	Max Tensile Force
NAU Drill Rod，1.5m	11.9	￠69.9	￠60.3	8.5	44.45	147kN
NAU Drill Rod，3.0m	23.4

NQ（NAU)) Drill Rod Enhanced in Imperial length

Description	G.W                    (Ibs)	O.D  (in）	I.D (in）	Thread Pitch (in)	Thread Length (in)	Max Tensile Force
NAU Drill Rod，5ft	26.23	2.75	2.38	3	1.75	147kN
NAU Drill Rod，10ft	52.4

Packing information：

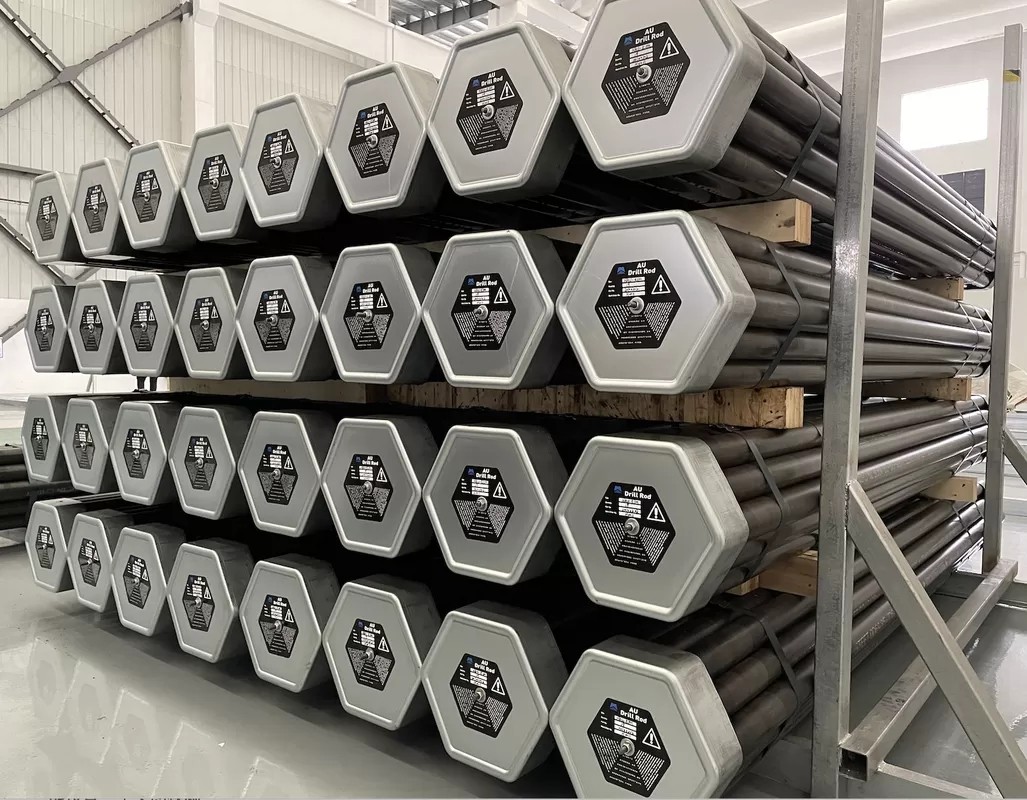

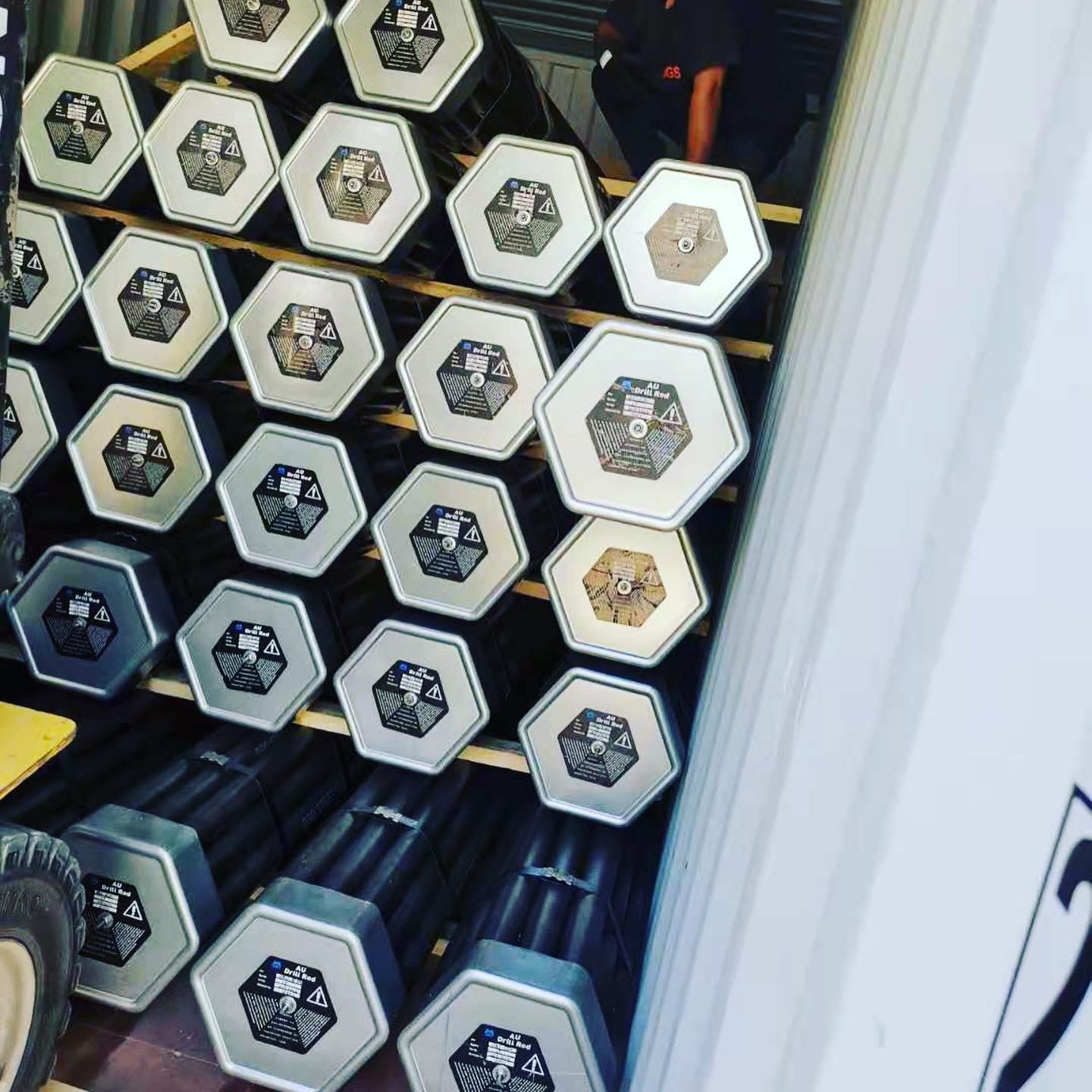

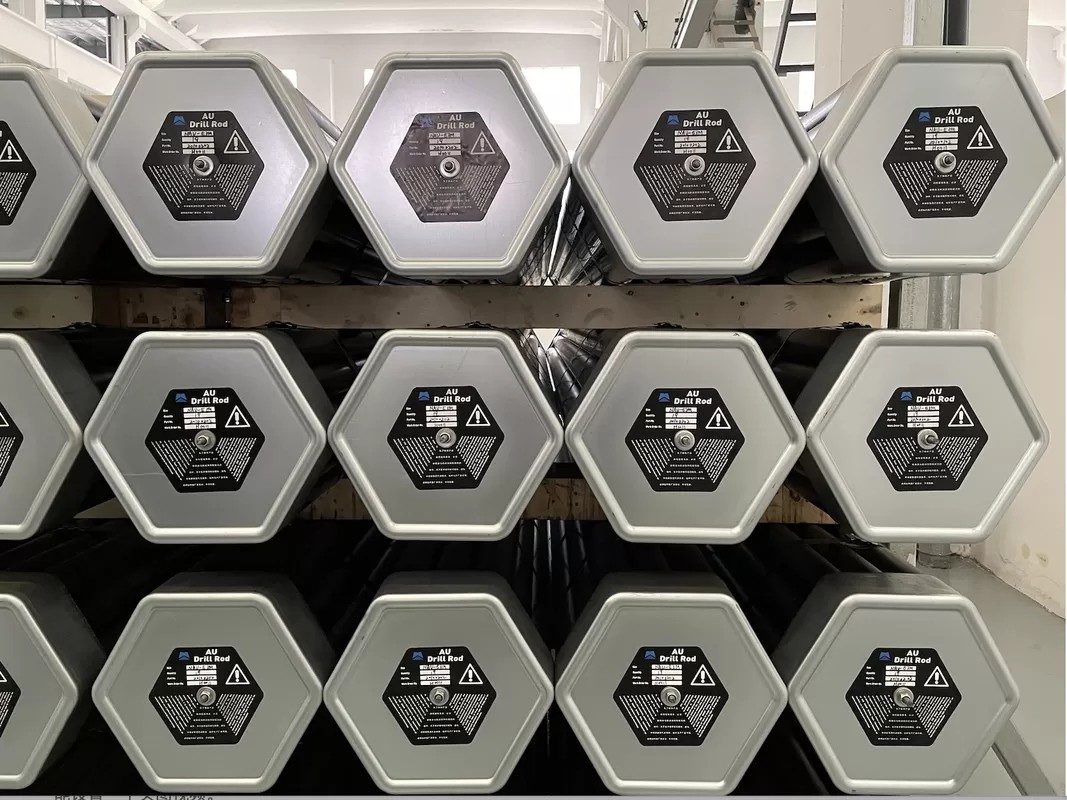

Drill rods are packaged and sold in "bundles" which offer rods protection during shipping and handling.

Protective by hard carton end caps cover box thread and pin threads sealing in thread by lubricating.

Heavy duty galvanized square or hexagon bundle and caps protect the drill rod.
