Product Description:

OVERVIEW:

L series portable core drilling rigs of various specifications, can use diesel, electric, group or integral power station.

It have excellent performance in many countries and regions, and the construction sites have covered Africa, Asia, South America, Central America, the Middle East, and the overlapping mountains and peaks of the Caribbean Sea.

FEATURE:

•The main structure is made of high-strength aluminum alloy material to reduce the weight of the machine and facilitate manual handling on site.

•Compact and can be deployed within a 3x3m (4x4m) work plane, allowing skilled personnel to disassemble and assemble the rig within 45 minutes.

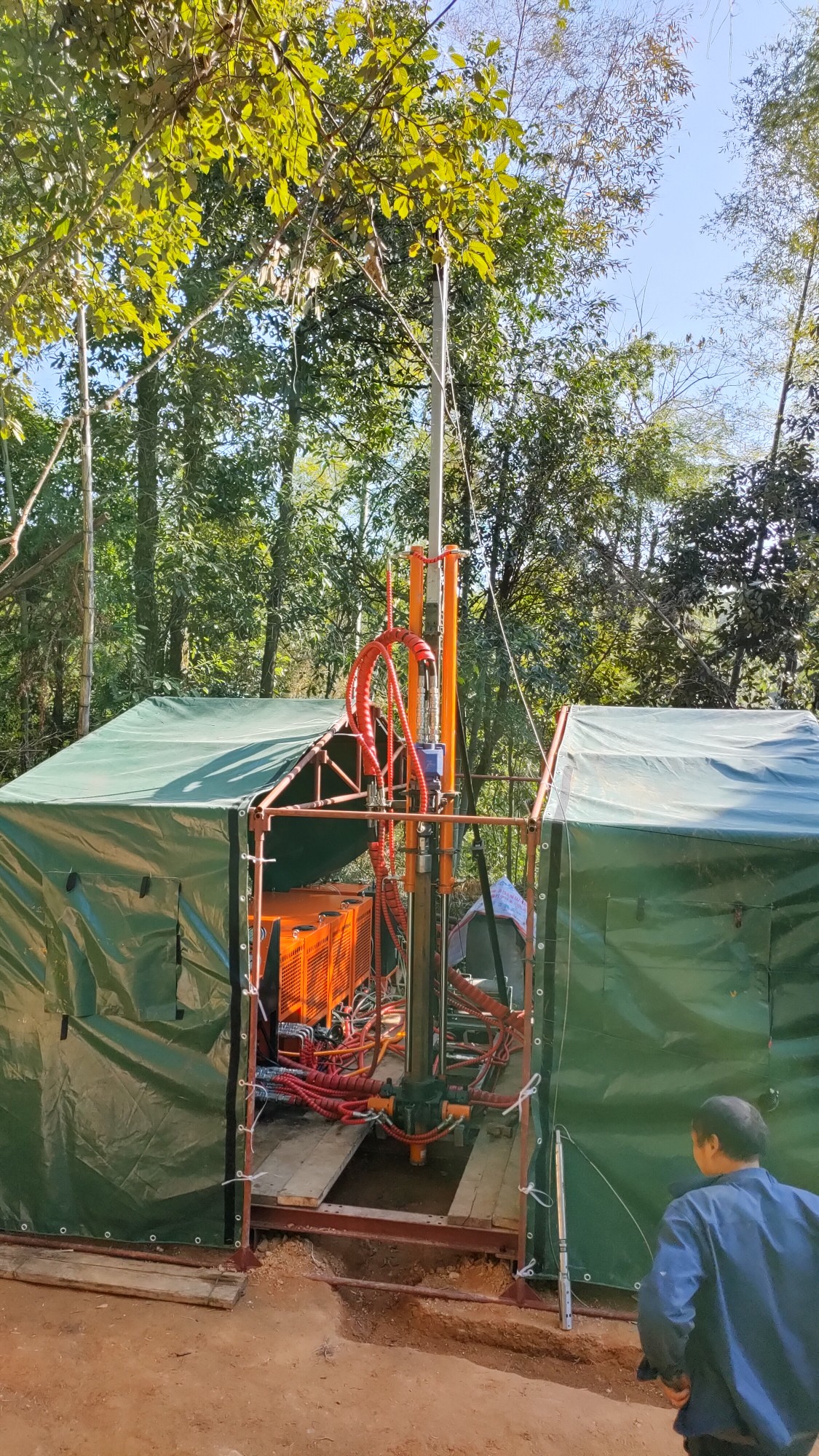

•If drilling site on forest and under bad road condition, the L series portable core drilling rigs can be transported by manpower along ridge access roads or footpaths, which has outstanding advantages in a variety of complex terrain conditions.

SPECIFICATION:

Specification	Model L300	Model L600	Model L800	Model L1000
Drill depth（B/N/H)	300/220/120 m	600/400/180 m	800/550/220 m	1000/760/500 m
Power	1 x 33 KW (Kubota)	3 x 24 KW (Kubota)	3 x 33 KW (Kubota)	4 x 33 KW (Kubota)
Feed stroke	1.2/1.8 m	1.8 m	1.8 m	1.8 m
Max torque	520 Nm	780 Nm	980 Nm	1200 Nm
Feed force	56KN	100KN	120KN	138KN
Rod dia	56-114mm	56-114mm	56-114mm	56-114mm
Rod length	1.0 or 1.5m	1.5m	1.5m	1.5m
Part max Weight	180 kg	160 kg	180 kg	180 kg
Handing form	Manual	Manual	Manual	Manual
